China manufacturer made BLADDER NXQ-A-25/31.5

Date:2023/11/14 9:25:39 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,

China manufacturer made BLADDER NXQ-A-25/31.5



DESCRIPTION



The factors that affect the service life of the accumulator bladder NXQ-A-25/31.5 include: the quality of the bladder, the compatibility of the working medium used with the bladder material; Or there is dirt mixed in; The nominal capacity of the selected accumulator is not suitable for the oil port; When the oil temperature is too high or too low for energy storage, does the reciprocating frequency exceed 1 time/10 seconds? If it exceeds 1 time/3 seconds, the service life begins to decrease, and if it exceeds 1 time/3 seconds, the service life sharply decreases; Whether the installation is good and the piping design is reasonable.



Working principle OF BLADDER NXQ-A-25/31.5



1. Supply a large amount of fuel in a short period of time

The accumulator bladder NXQ-A-25/31.5 can store excess pressure oil delivered by the hydraulic pump in hydraulic systems that operate intermittently or achieve periodic action cycles. When the system needs it, it is released by the accumulator. This can reduce the rated flow rate of the hydraulic pump, thereby reducing the power consumption of the motor and reducing the temperature rise of the hydraulic system.

2. Absorb hydraulic shock and pressure pulsation

The accumulator bladder NXQ-A-25/31.5 can be used to absorb hydraulic impacts caused by rapid changes in fluid flow velocity and direction, greatly reducing its pressure amplitude to avoid component damage. Install an accumulator at the outlet of the hydraulic pump to absorb the pulsating pressure of the hydraulic pump.



REGULAR MODELS



servo valve G761-3033B
AST/OPC solenoid valve coil 300AA00086A
AST/OPC solenoid valve coil 300AA00126A
Accumulator bladder NXQ A 10/31.5
sealing oil float tank float valve BYF-40
servo valve G761-3034B
AST solenoid valve SV13-12V-0-0-00
OPC solenoid valve SV4-10V-C-0-00
BLADDER LNXQ-A-10/20 FY
single stage centrifugal pump DFBII80-50-240
generator stator cooling water pump 50-250C
OPC solenoid valve SV13-12V-O-0-00
vacuum pump 30-WS
Servo valve SM4-20(15)57-80/40-10-S182
globe valve SHV20

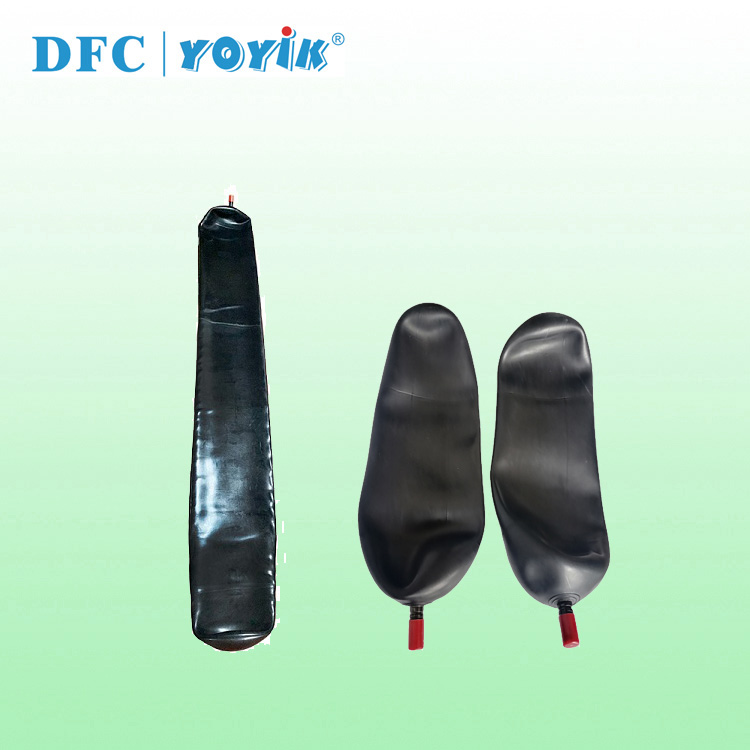

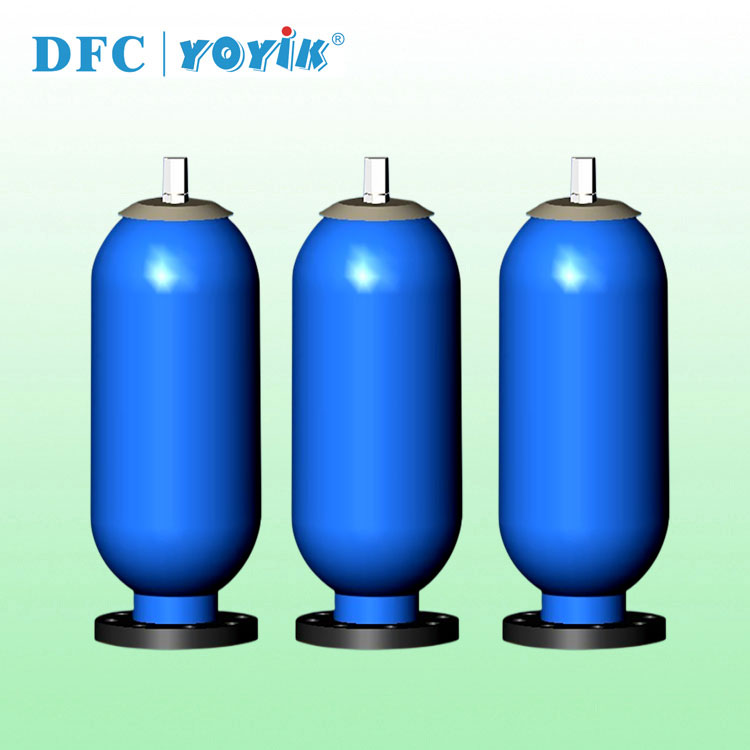

PRODUCT PICTURE



















Please contact us if your need is not listed above. SEND EMAIL
