China Steam Turbine Fasteners Bolts Nuts Screws Manufacturer





PRODUCT DESCRIPTION



Most of the steam turbine fasteners work at high temperature and high pressure for a long time, requires very high quality material and material processing. Generally, high strength and high temperature resistant materials such as alloy steel, heat-resistant stainless steel and superalloy are adopted, and heat treatment, blackening and non-destructive detection are applied.



Regular used material includes:

21CrMoV5-7

20Cr1Mo1VTiB/VNbTiB

2Cr11NiMoNbVN

20Cr1Mo1VNbTiB

2Cr12NiMoWV

1Cr11Co3W3NiMoVNbNB

1Cr11MoNiW1VNbN

R26

GH4169



Ni80TiAl



In order to adapt to the working environment of high temperature, high stress, and steam oxidation corrosion, the steel used for making steam turbine fasteners needs to have good strength, toughness, oxidation resistance, creep resistance, and relaxation performance, low heat embrittlement tendency, low notch sensitivity, and a certain degree of corrosion resistance.





REGULAR USED STEAM TURBINE FASTENERS



Lock Washers	Spring Washer
Positioning Bolt	High Temperature Special Nut
High Pressure Cylinder Nut	Slotted Nut
Hexagon Nut	Socket Hex Bolt
Spherical Gasket	Double Head Bolt
Cover Nut	Stop Washer

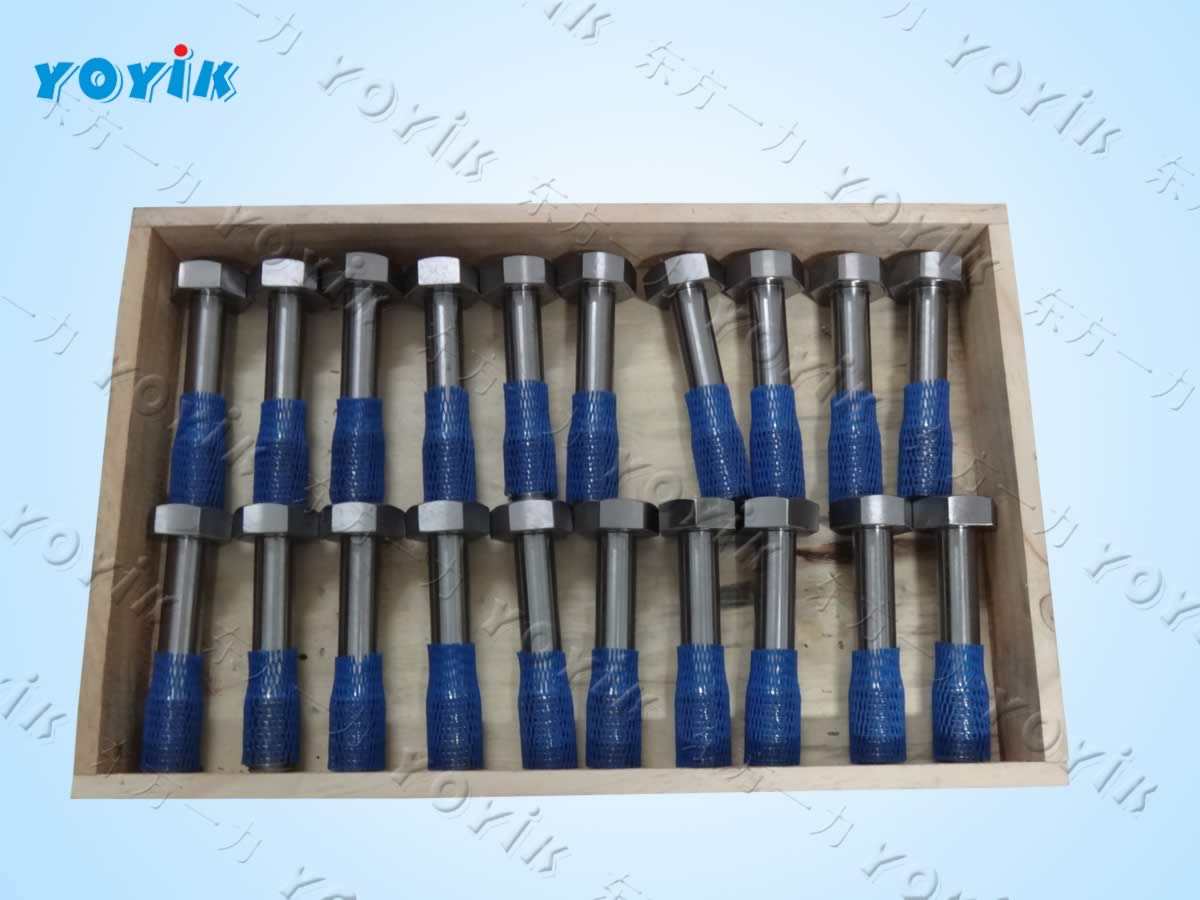

PRODUCT PICTURE









AVAILABLE MODELS



Bolt M16×40 GB5782B-BB

Stud bolt M48×3×110 GB898C-88
