HTD-300-3 China LVDT displacement sensor range 0-300mm

Date:2017/9/6 16:31:22 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,

 HTD-300-3 China LVDT displacement sensor range 0-300mm

The  LVDT displacement sensor HTD-300-3 is one of the HTD series sensor , with a range of 0-300mm and a 3-wire travel sensor. It can be used for travel measurement, displacement measurement and automatic control of power plant hydraulic servomotors. It has the characteristics of wide range, convenient installation, simple use, durability and long-term continuous use.

The LVDT displacement sensor HTD-300-3 can be processed according to the customer's requirements, such as lengthening the cable, wear-resisting and high-temperature resistance.

Technical parameters of HTD series displacement sensor

Range: 0 กซ 300mm

Nonlinearity: not more than 0.5% F • S.

Working temperature: common type - 40 ° C~+150 ° C; High temperature type - 40 ° C~+210 ° C

Note: High temperature type needs to be noted in advance

Temperature drift coefficient: less than 0.03% F • S/° C.

Outgoing wire: three Teflon insulated sheathed wires with stainless steel sheathed hose.

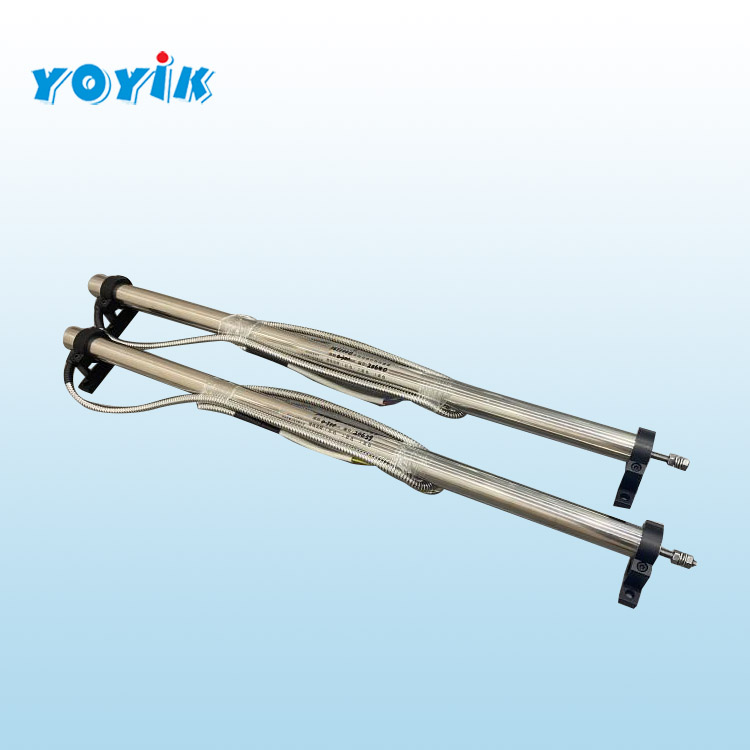

 HTD-300-3 LVDT displacement sensor range 0-300mm

The 3-wire HTD series sensor has the following options:

LVDT displacement sensor HTD-50-3

LVDT displacement sensor HTD-100-3

LVDT displacement sensor HTD-150-3

LVDT displacement sensor HTD-200-3

LVDT displacement sensor HTD-250-3

LVDT displacement sensor HTD-300-3

LVDT displacement sensor HTD-350-3

LVDT displacement sensor HTD-400-3

LVDT displacement sensor HTD-450-3

LVDT displacement sensor HTD-500-3
