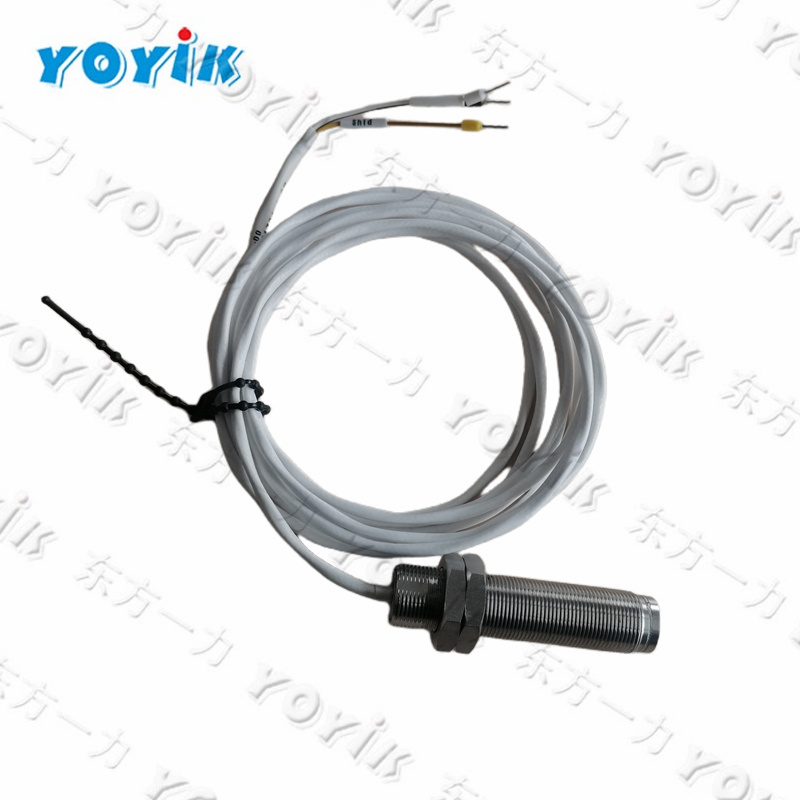

The sensor CS-3-M10*1-L100 is a speed probe that is sensitive to magnetic induction intensity, magnetic field intensity, and magnetic flux, and can convert these signals into electrical signals. Mainly used for monitoring and protecting various rotating equipment, such as motors, fans, pumps, etc.

Technical parameters of sensor CS-3-M10 * 1-L100:

1. Measurement range: 0-20000 pulses per second.

2. Measurement accuracy: ± 1 pulse per second.

3. Installation distance: ≤ 1mm.

4. Gear module: ≥ 1.

5. Gear thickness: ≥ 5mm.

6. Output mode: open collector output.

7. Environmental temperature: -40~120 ℃.

8. Power supply voltage: DC 12V~DC 24V.

9. Power consumption: 1W.

10. Installation size: M10 × 1.

When installing sensors CS-3-M10 * 1-L100, the distance between the probe and the gear should be ≤ 1mm. The sensor probe should be perpendicular to the gear, and a multi-core shielded cable should be used from the sensor to the secondary instrument. The shielding layer should be grounded at the instrument end to effectively avoid interference with the sensor.
