Rotation Speed Sensor SZCB-01-B01 for Tanjung Balai Karimun power

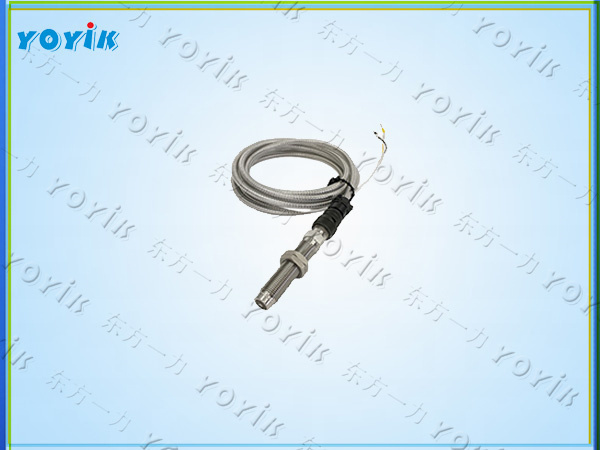

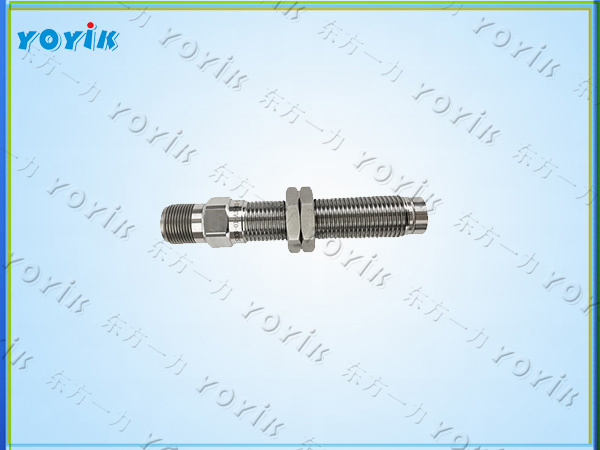

Date:2025/3/28 9:13:44 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,The Rotation Speed Sensor SZCB-01-B01 is a non-contact speed measuring instrument based on the magnetoresistance effect. It is widely used in speed monitoring of rotating equipment such as steam turbines, generator sets, fans, pumps, etc. It can accurately measure the speed of rotating objects and convert the speed signal into an electrical signal output, providing an important basis for the operation control and fault diagnosis of the equipment.
Working principle
The Rotation Speed Sensor SZCB-01-B01 is composed of a magnetic steel, a soft magnetic armature and a coil. When the object to be measured (such as a gear, an impeller, etc.) rotates, its tooth top and tooth valley pass through the front end of the sensor in turn, causing the magnetic flux in the magnetic circuit to change. According to the law of electromagnetic induction, an induced electromotive force will be generated in the coil, and its frequency is proportional to the speed of the object to be measured. By measuring the frequency or amplitude of the induced electromotive force, the speed of the object to be measured can be obtained.
Installation and use
During installation, the sensor needs to be fixed in an appropriate position on the equipment to ensure that the gap between the front end of the sensor and the tooth top of the gear to be measured meets the requirements. Connect the signal line, and perform wiring and debugging according to the control requirements of the equipment. During use, the installation status and signal output of the sensor should be checked regularly to ensure its normal operation.
Notes
1. Pay attention to the relative position of the sensor and the gear being measured during installation to ensure measurement accuracy.
2. The gear being measured should be made of metal material with strong magnetic permeability, and the tooth profile should be an involute tooth profile to ensure signal stability and accuracy.
3. Avoid using it in an environment with strong electromagnetic interference to prevent interference with the sensor signal.
4. Regularly maintain and inspect the sensor to ensure its long-term stable working performance.
