LVDT Position Sensor HTD-100-3 for Talwandi Sabo power

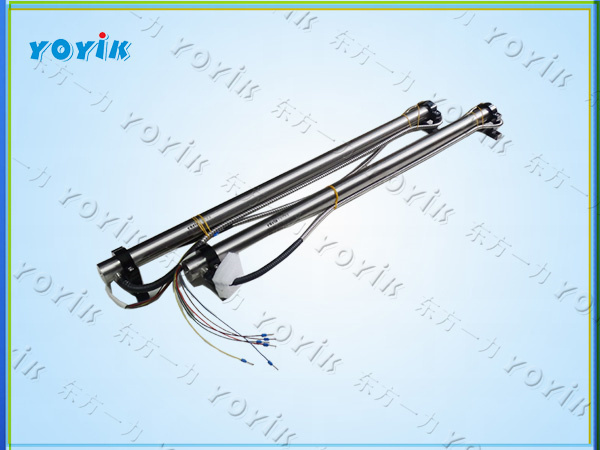

Date:2025/3/28 9:06:52 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,LVDT position sensor HTD-100-3 is a high-precision displacement measuring instrument, which is particularly suitable for monitoring position parameters such as oil motor stroke and valve opening in large mechanical equipment such as steam turbines. It can convert mechanical displacement into electrical signal output to realize real-time monitoring of the equipment operation status.
Working principle
The sensor adopts linear variable differential transformer (LVDT) technology. When the displacement of the measured object causes the position of the iron core in the transformer coil to change, the output voltage of the transformer will also change accordingly. By measuring the change in output voltage, the displacement of the measured object can be obtained. This measurement method has the advantages of high precision, high repeatability, and strong anti-interference ability.
Performance characteristics
1. High-precision measurement: It can accurately measure tiny displacement changes and meet the requirements of high-precision control.
2. Strong reliability: simple structure, no friction parts, long service life, and can work stably in harsh environments.
3. Good linearity: The output signal has a good linear relationship with the displacement, which is convenient for signal processing and control.
4. Fast response speed: It can quickly respond to the displacement changes of the measured object and reflect the operating status of the equipment in real time.
Installation and Use
During installation, the sensor needs to be fixed in a suitable position to ensure that the measuring rod and the moving direction of the measured object are consistent. Connect the signal line, debug and calibrate according to the equipment requirements to ensure the accuracy and stability of the output signal. During use, the installation status and working performance of the sensor should be checked regularly, and possible problems should be dealt with in a timely manner.
