Differential pressure transmitter CS-III for Dahanu power

Date:2025/3/28 9:01:24 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,

 The differential pressure transmitter CS-III is a high-precision measuring instrument, which is widely used in the industrial field to measure the differential pressure of liquid, gas or steam. In the turbine system, it can accurately monitor the pressure difference in the oil system, providing an important basis for the safe operation and maintenance of the equipment.



Working principle

The transmitter is based on advanced sensor technology and signal processing circuit, which can convert the differential pressure signal into a standard electrical signal output. When the pressure of the measured medium acts on the sensor, the sensor will generate an electrical signal proportional to the pressure. After amplification and processing, it outputs a stable 4-20mA current signal or other standard signal for connection with various display and control devices.



Performance characteristics

-High-precision measurement: It has high-precision measurement capabilities to ensure the accuracy and reliability of data.

-Strong stability: It adopts high-quality materials and advanced manufacturing processes, and has good stability and anti-interference ability.

-Wide application range: It is suitable for differential pressure measurement of various media, including high temperature, high pressure and other harsh working conditions.

-Easy installation: Reasonable design, simple installation, easy to integrate with existing systems.

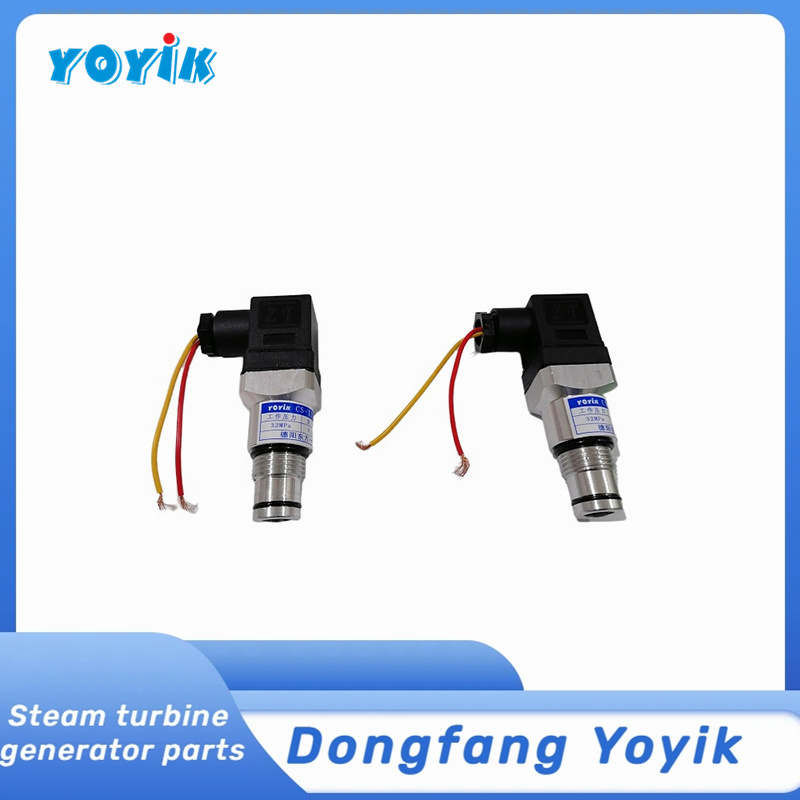

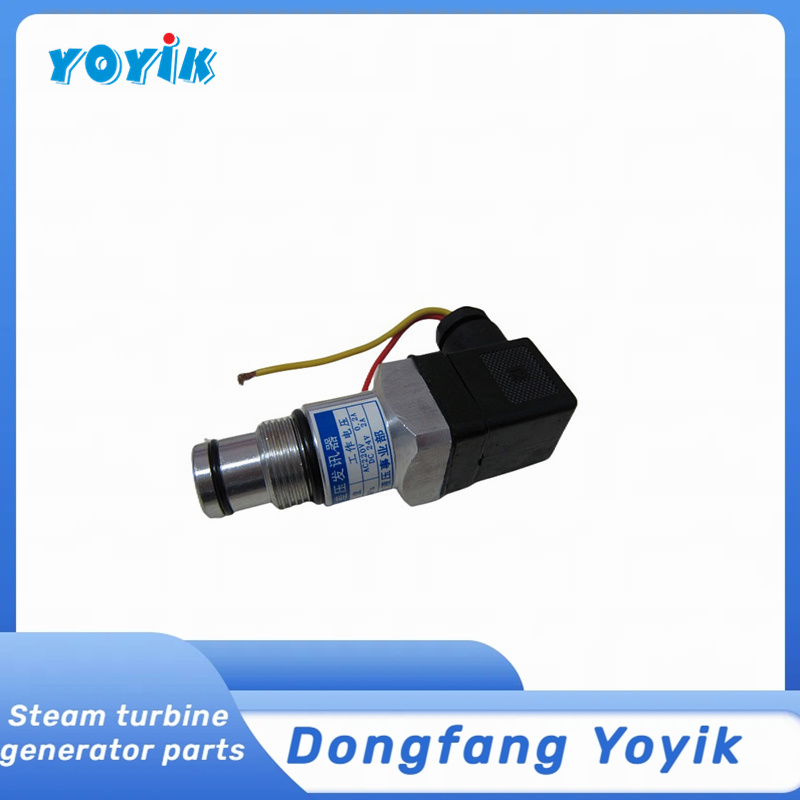

Differential pressure transmitter CS-IIIDifferential pressure transmitter CS-IIIDifferential pressure transmitter CS-III
