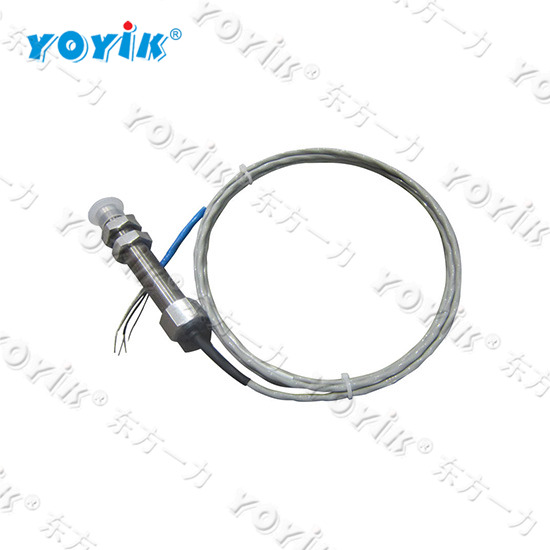

Speed Sensor CS-1 G-065-05-01 for Gorontalo power
Date:2025/3/27 9:16:10 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,The speed sensor CS-1 G-065-05-01 uses the magnetoresistive principle to measure the speed. As the rotor rotates at high speed, the magnetic flow lines generated by the electromagnetic coil change accordingly. This change in magnetic flow lines will cause the magnetic field in the magnetic resistance line to change, thereby causing the resistance value of the magnetic resistance line to change. By detecting the frequency of the change in resistance value, the speed of the rotor can be calculated.
Application
The speed sensor CS-1 G-065-05-01 is widely used in various fields that require accurate speed or speed measurement, such as power plants, chemical plants, metallurgical plants, machinery plants, etc. In power plants, it can be used to monitor the speed of rotating equipment such as turbines and generators; in chemical plants, it can be used to monitor the speed of equipment such as agitators and pumps; in metallurgical plants, it can be used to monitor the speed of equipment such as rolling mills and coilers. In addition, the sensor can also be used in automotive ABS systems, taxi meters, motorcycle engine speed measurement and other fields.
Use and maintenance
1. Installation: When installing the speed sensor CS-1 G-065-05-01, ensure that the connection between the sensor and the object to be measured is firm and reliable, and the sensor can accurately sense the magnetic field changes of the rotating parts. At the same time, attention should be paid to the adjustment of the installation gap to ensure the measurement accuracy.
2. Calibration: Calibrate the sensor regularly to ensure its measurement accuracy. During the calibration process, a standard speed source or speed source should be used for comparison, and the calibration results should be recorded.
3. Maintenance: Clean the dust and dirt on the sensor housing and cable regularly to keep the sensor clean and in good performance. At the same time, check whether the connection line and terminal of the sensor are loose or damaged, and replace or repair them in time if necessary. In addition, attention should be paid to the working environment of the sensor to avoid it being in harsh environments such as high temperature, high humidity, and strong magnetic field for a long time.
