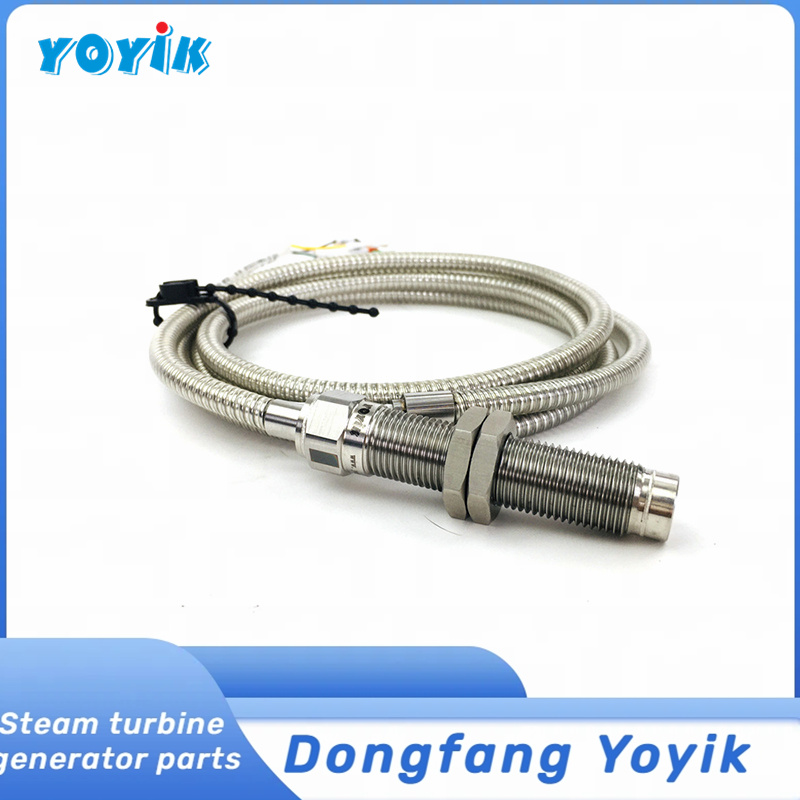

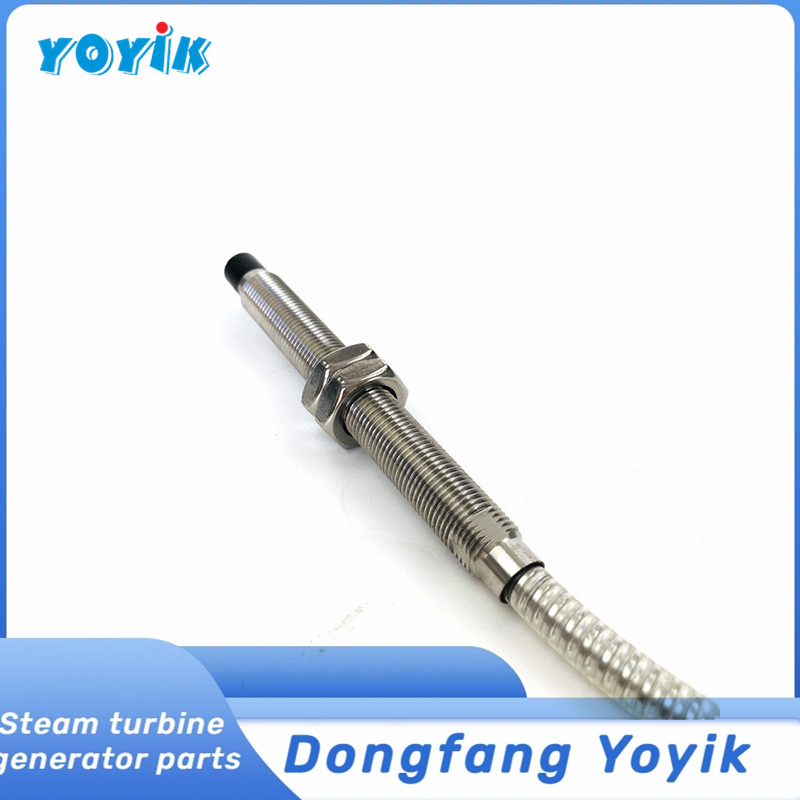

Rotation Speed Probe CS-3-M16-L100 for Bangka Belitung 3 power
Date:2025/3/26 9:11:03 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,The Rotation Speed Probe CS-3-M16-L100 is a high-performance, high-precision non-contact speed measurement sensor suitable for speed monitoring and protection of various rotating equipment, especially for occasions where zero speed or reverse speed needs to be measured. For example, it plays an important role in the operation monitoring and protection of equipment such as industrial water pumps, turbines, compressors and blowers.
Basic characteristics
1. Measurement principle: The non-contact measurement principle is adopted to accurately detect the speed of gears, racks, axles, etc. This non-contact measurement method reduces the risk of mechanical wear and increases the service life of the sensor.
2. Shell structure: The shell adopts a stainless steel threaded structure, which is not only sturdy and durable, but also easy to install and fix.
3. Internal design: The internal cast-in sealed design enables the probe to work stably under harsh environmental conditions, such as smoke, oil and gas, water vapor and other environments.
4. Measurement range: The measurement range is wide, suitable for the monitoring and protection of zero speed and reverse speed of rotating equipment such as industrial water pumps, turbines, compressors and blowers.
Functional features
1. Forward and reverse discrimination: Since the sensor can give two speed signals with a certain phase difference, forward and reverse discrimination can be performed. This function makes the Rotation Speed Probe CS-3-M16-L100 more widely used in the monitoring and protection of rotating machinery.
2. Zero speed measurement capability: It has good low-frequency characteristics, and its low-frequency characteristics can be as low as 0Hz, which means that it can be used for zero speed measurement of rotating machinery. This function makes the sensor more accurate when detecting the stationary state or extremely low speed of rotating machinery.
3. High speed measurement range: In addition to the zero speed measurement capability, it also has a high frequency characteristic of up to 20kHz, which enables it to meet the high speed measurement requirements of most industrial fields.
Summary of advantages
1. High-precision measurement: Ensure the accuracy of the measurement results and improve the operating efficiency and safety of the equipment.
2. Non-contact measurement: Reduce mechanical wear and extend the service life of the sensor.
3. Strong anti-interference ability: It can still work stably in harsh environments to ensure the reliability of the measurement results.
4. Adapt to various environments: wide operating temperature range, high protection level, suitable for industrial production under various environmental conditions.
