Magnetic Rotational Speed Sensor CS-1 G-065-02-01 for Sant Singaji power

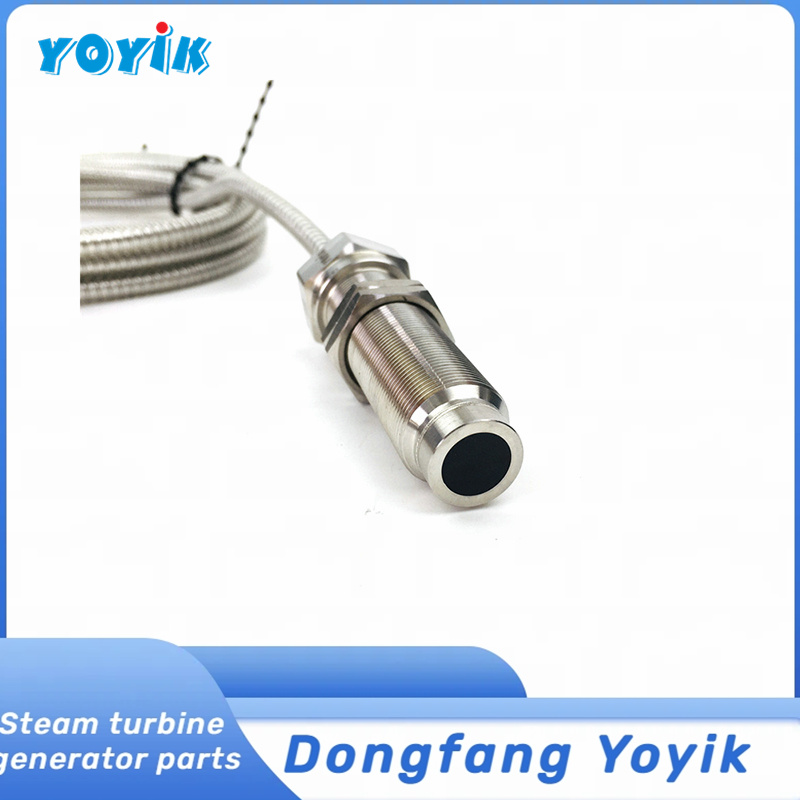

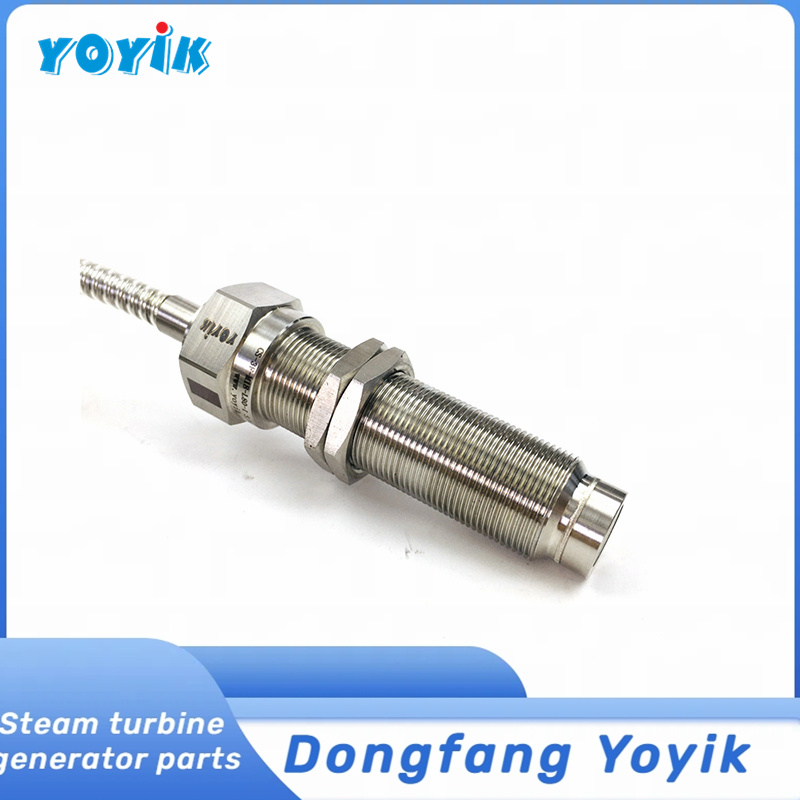

Date:2025/3/26 9:05:31 Visits: Author:Dongfang YOYIK Engineering Co; Ltd,The Magnetic Rotational Speed Sensor CS-1 G-065-02-01 is a high-precision and stable speed measurement device. It adopts the principle of magnetoresistive induction and is mainly composed of two parts: a permanent magnet and a magnetoresistor. When a rotating gear, rack or other moving device approaches the sensor, the magnetic resistance changes, and the resistance value of the magnetoresistor also changes accordingly, thereby generating an electrical signal. After amplification, shaping and other processing, this electrical signal is converted into a speed signal output.
Technical features
1. High-precision measurement: The Magnetic Rotational Speed Sensor CS-1 G-065-02-01 can accurately measure the speed of rotating machinery and output a frequency signal proportional to the speed. The signal can be visualized through the tachometer used with the sensor, which is convenient for users to understand the operation of the equipment.
2. Non-contact measurement: The sensor does not contact the rotating parts being measured, avoiding wear and errors caused by friction. At the same time, this non-contact measurement method also improves the service life and reliability of the sensor.
3. Strong anti-interference ability: The sensor adopts cast-in sealing technology inside and stainless steel threaded structure outside, which has good high temperature resistance and anti-interference ability. The lead-out cable adopts metal shielded soft wire, which further enhances the anti-interference performance.
4. Adapt to harsh environment: The Magnetic Rotational Speed Sensor CS-1 G-065-02-01 can be used in relatively harsh conditions such as smoke, oil and gas, water vapor and other environments, and has a wide range of applicability.
Application
The Magnetic Rotational Speed Sensor CS-1 G-065-02-01 is widely used in the speed measurement of various rotating machinery, such as engines, motors, fans, pumps, etc. In the field of steam turbines, it has been widely used due to its high precision and good stability. In addition, the sensor can also be used for speed measurement of magnetic conductive objects, such as gears, shafts, etc.
Summary of advantages and features
1. High-precision measurement: ensure the accuracy of the measurement results.
2. Non-contact measurement: avoid friction and wear, and improve service life and reliability.
3. Strong anti-interference ability: ensure stable operation in harsh environments.
4. Adapt to harsh environments: has a wide range of applicability.
5. Easy to install and maintain: simple structure, easy installation, and low maintenance cost.
